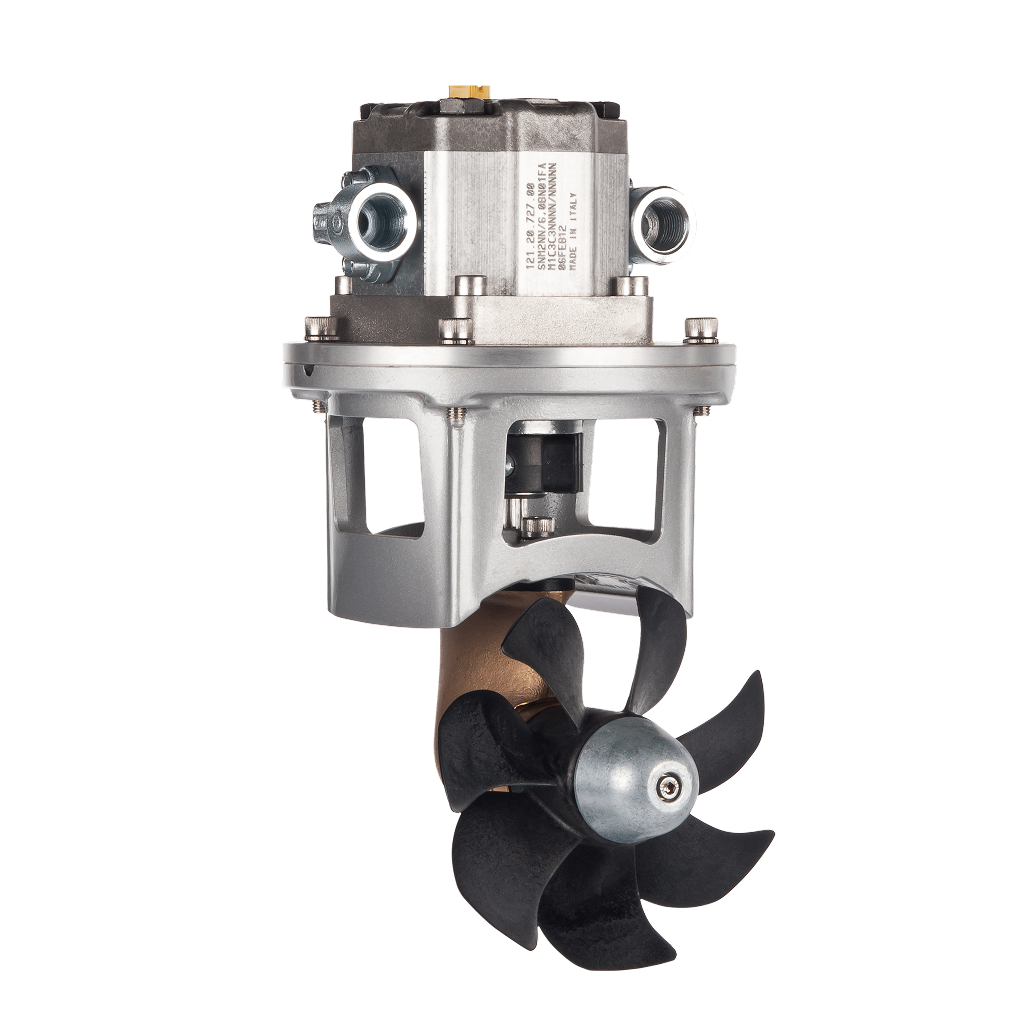

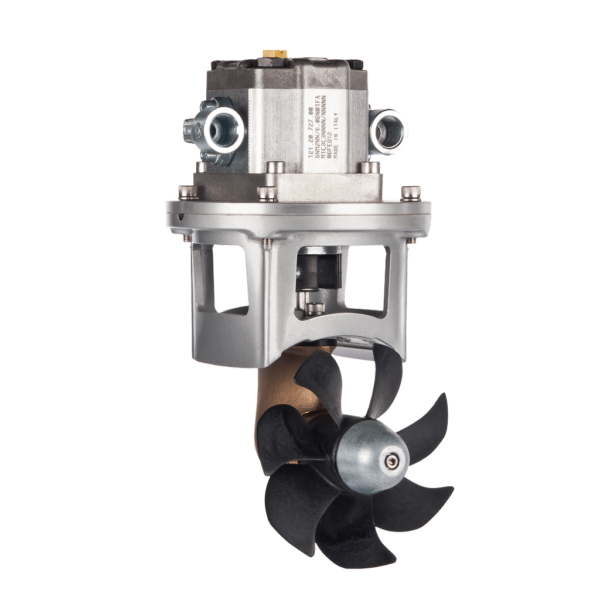

Hydraulic Thruster 80-115kgf, 8cc

Assets:

  • Maintenance-free synthetic propeller.
  • Unlimited run time.
  • Durable hydraulic gearmotor.
  • High quality hydraulic components.
  • Replaceable zinc or aluminium anode.
  • Flexible coupling to absorb vibrations.
  • Brass tailpiece.
  • Supplied with 1mm and 2mm gasket to center the propeller inside the tunnel.
  • Optimised propeller design for maximum efficiency.
Article Code BA.185.20008
Thrust Force 80 – 115 kgf
Tunnel Diameter 185 mm
Hydraulic Motor 8 cc/rev
Power 4 – 6 kW
Pressure 100 – 150 bar
Flow Rate 32 – 39 l/min
Hose Connection G 1/2
Drain G 1/4
Weight 8 kg
