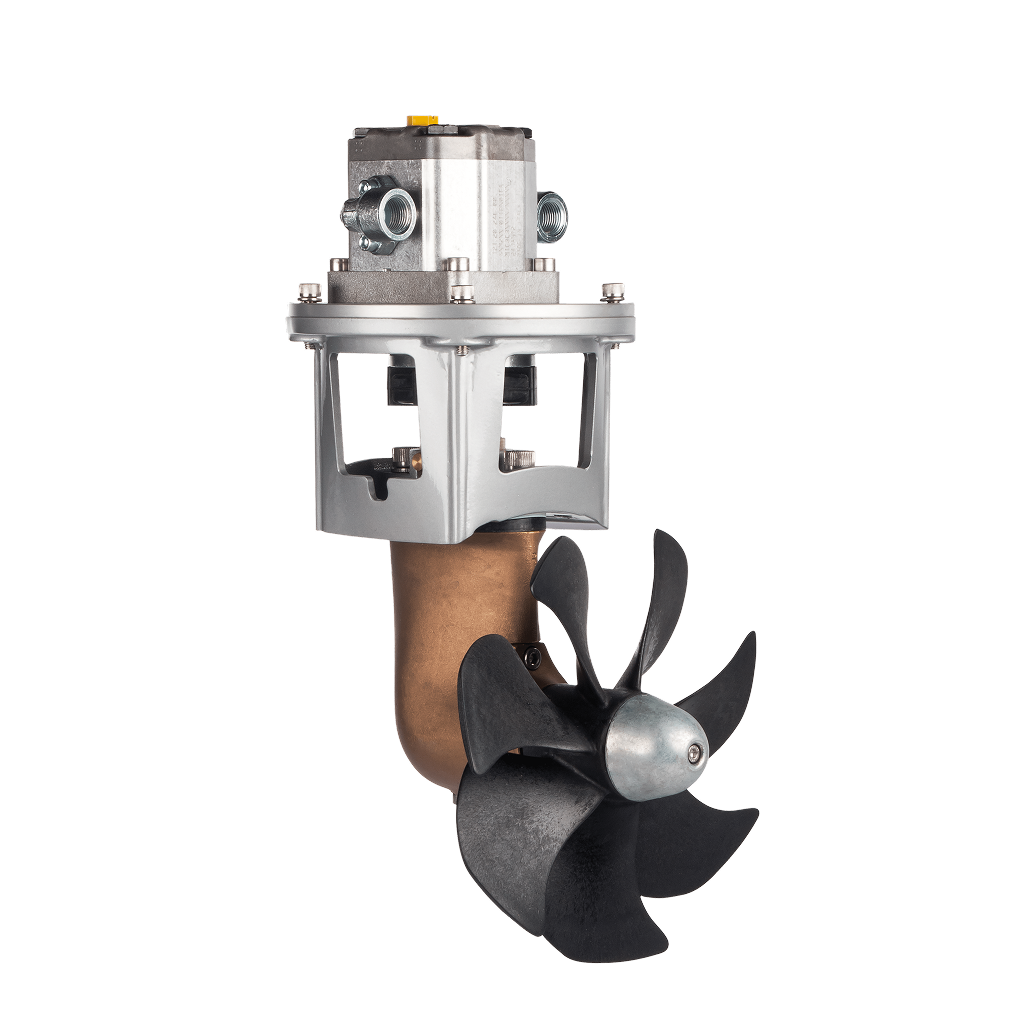

Hydraulic Thruster 120-180kgf, 11cc

Assets:

  • Maintenance-free synthetic propeller.
  • Unlimited run time.
  • Durable hydraulic gearmotor.
  • High quality hydraulic components.
  • Replaceable zinc or aluminium anode.
  • Flexible coupling to absorb vibrations.
  • Brass tailpiece.
  • Supplied with 1mm and 2mm gasket to center the propeller inside the tunnel.
  • Optimised propeller design for maximum efficiency.
Article Code BA.250.20011
Thrust Force 120 – 180 kgf
Tunnel Diameter 250 mm
Power 6,5 – 12 kW
Hydraulic Motor 11 cc/rev
Pressure 125 – 180 bar
Flow Rate 34 – 41.5 l/min
Hose Connection G 1/2
Drain G 1/4
Weight 12 kg

Recommended Components
