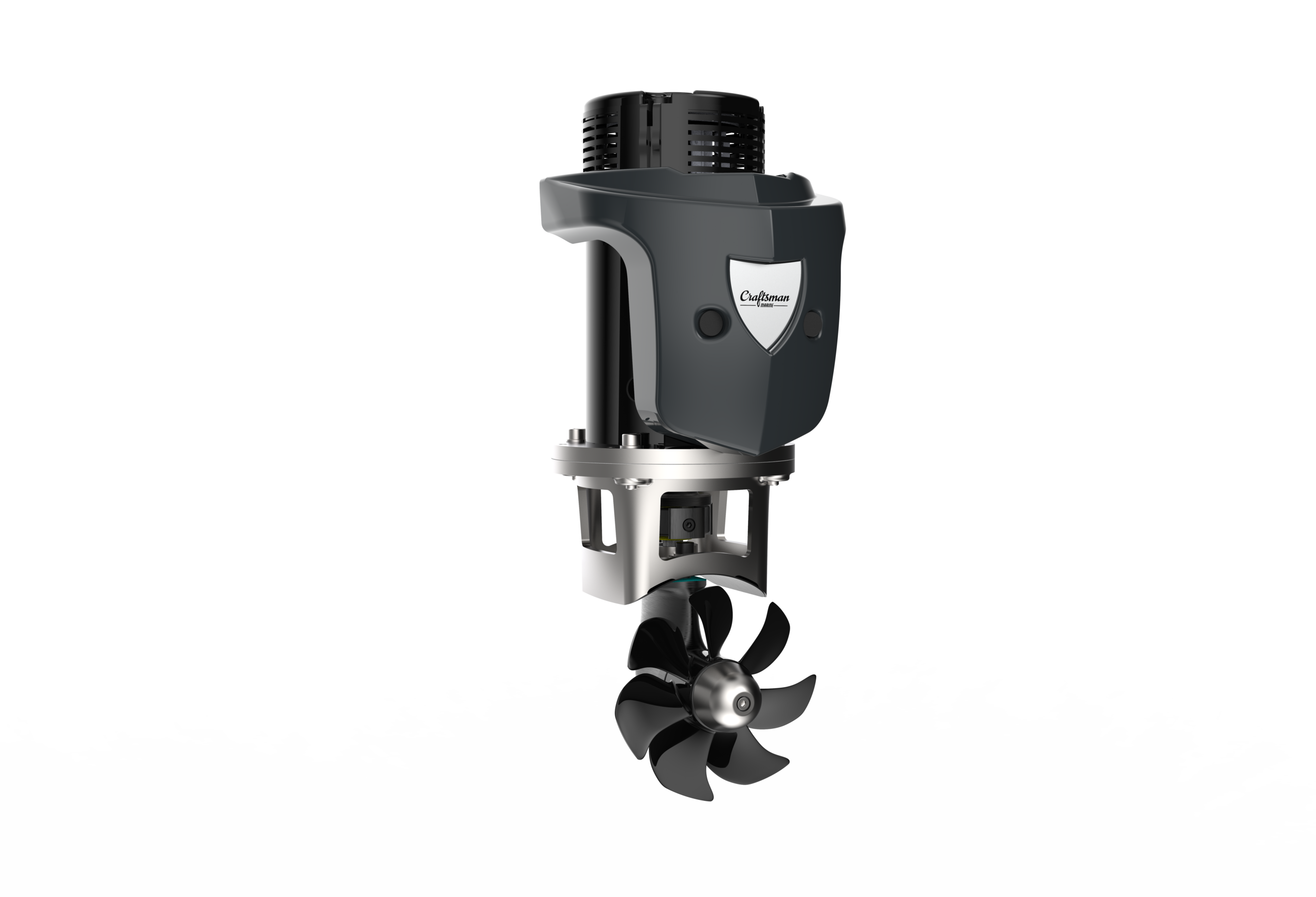

Electric Thruster 60kfg, 12V

Product code BA.150.06012
Average thrust force @ 10.5V
Starting peak force (1.5 sec.)
60 kfg
95 kfg (peak)

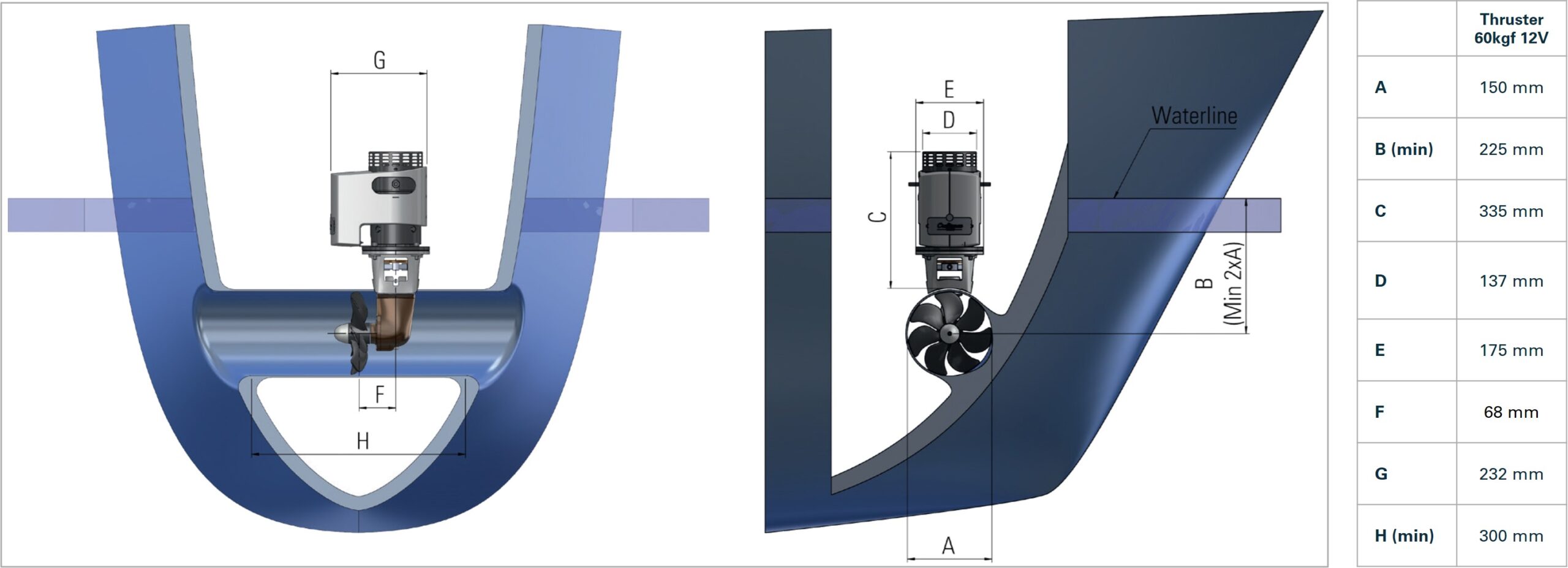

Tunnel Diameter 150mm
Electric Motor DC series excitation
3.7kW (5 hp) 12 V
Motor Temperature Protection Yes
Operation Time
Continuous use
Intermittent use
2 minutes/hour
8 minutes
Current  consumption 460 A
Min. Battery Capacity 160 Ah
Main Fuse (ANL, Slow Blow) 300 A
Battery cable, total length of plus and minus * 7-10 m / 70 mm2
10-14 m / 95 mm2
Battery terminal connection M10
Weight 17.67 kg
