Electric Thruster 180kgf 24V

General features:

  • Protection cover for electrical components.
  • Easily accessible battery connection terminals.
  • Waterproof and latch lock connector for the control panel. A 100% guaranteed connection also in case of vibrations.
  • Motor temperature protection switch.
  • 5A circuit breaker for the control panel.
  • Brass tail piece.
  • Replaceable zinc or aluminium anode.
  • Flexible coupling to absorb vibrations.
  • Supplied with 1mm and 2mm gasket to center the propeller inside the tunnel.
  • FAN for extra cooling.
Product code BA.250.18024
Thrust force @ 21V

Starting peak force (1.5 sec)

180 kgf

270 kgf

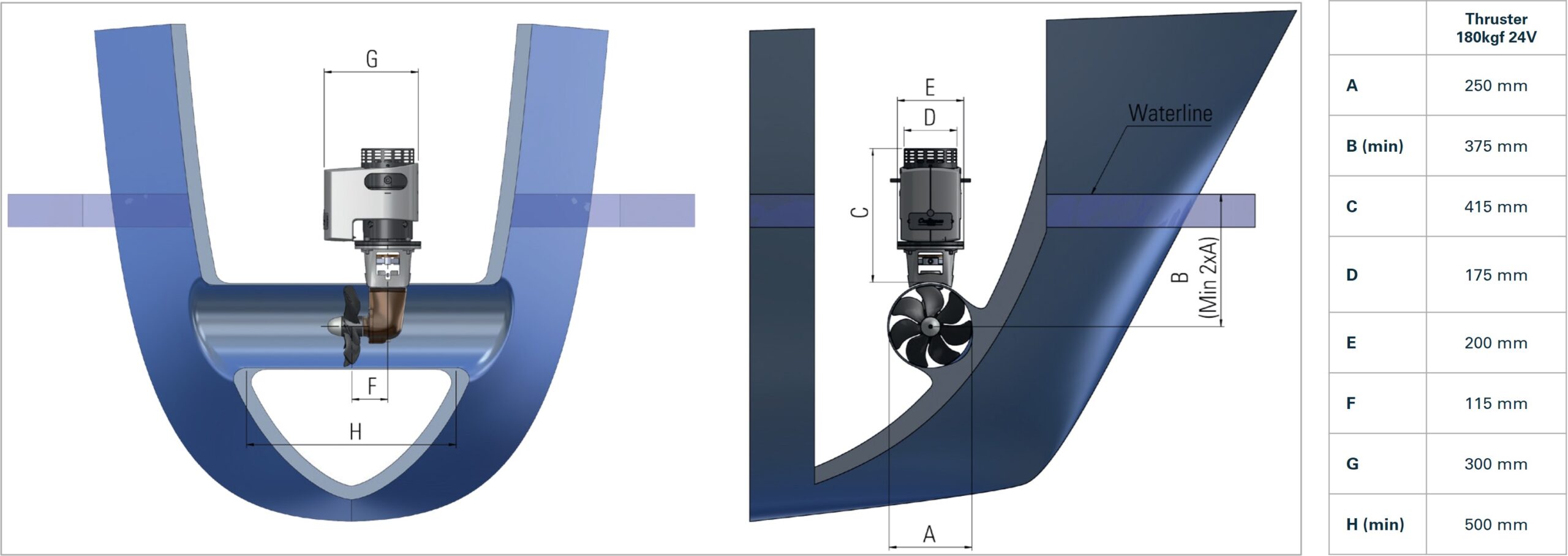

Tunnel diameter 250 mm
Electric motor 11.3 kW (15.4 hp)

24 V DC

Temperature switch Yes
Operating Time 2 min/hour
Current Consumption 550 A
Min. Battery Capacity 2*200 Ah
Fuse slow-blow (ANL) 355 A
Battery cable, total length of plus
and minus
0-22 m / 95 mm2

22-28 m / 120 mm2

Battery connection M10
Weight
(motor incl. tail piece)
37.2 kg
Motor body IP rating IP21
