Electric Thruster 155kgf 24V

General features:

  • Protection cover for electrical components.
  • Easily accessible battery connection terminals.
  • Waterproof and latch lock connector for the control panel. A 100% guaranteed connection also in case of vibrations.
  • Motor temperature protection switch.
  • 5A circuit breaker for the control panel.
  • Brass tail piece.
  • Replaceable zinc or aluminium anode.
  • Flexible coupling to absorb vibrations.
  • Supplied with 1mm and 2mm gasket to center the propeller inside the tunnel.
  • FAN for extra cooling.
Product code BA.250.15524
Thrust force @2 1V

Starting peak force (1.5 sec)

155 kgf

230 kgf (peak)

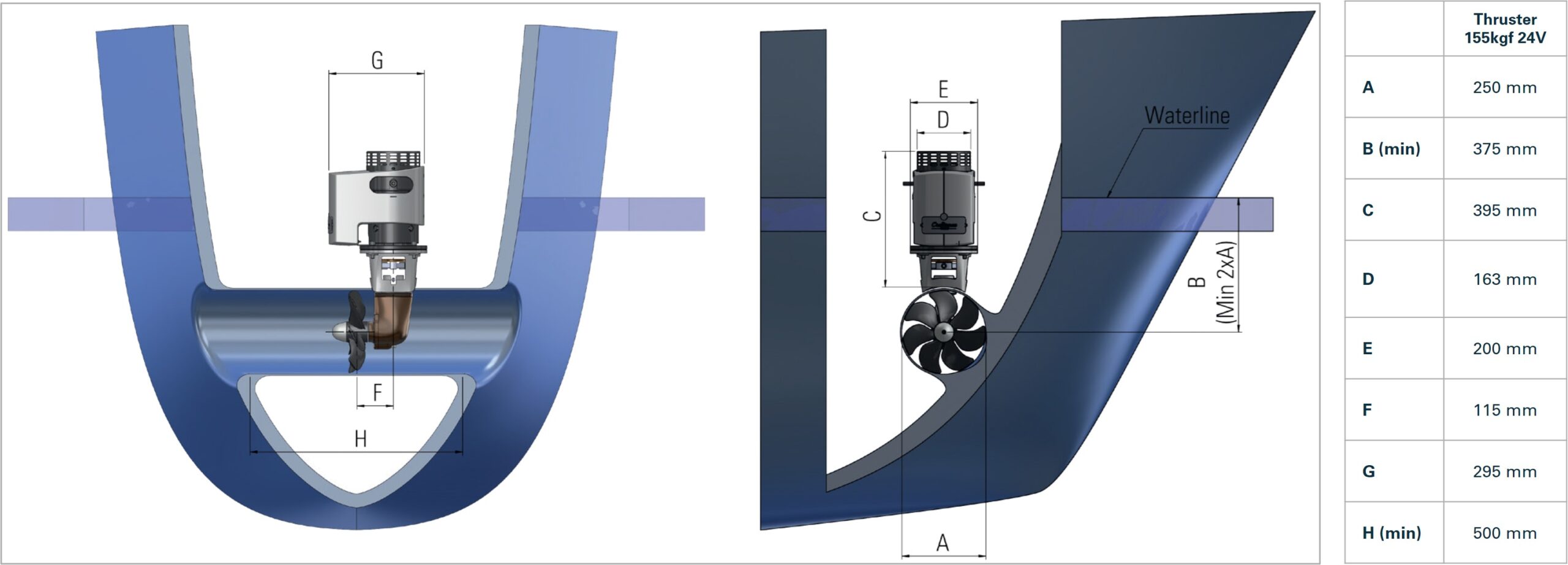

Tunnel diameter 250 mm
Electric motor 6.5 kW (8.8 hp)

24 V DC

Temperature switch Yes
Operating Time 2 min/hour
Current Consumption 450 A
Min. Battery Capacity 2*120 Ah
Fuse slow-blow (ANL) 300 A
Battery cable, total length of plus
and minus
0-21m / 70mm2
21-29m / 95mm2
Battery connection M10
Weight
(motor incl. tail piece)
30.0 kg
Motor body IP rating IP21
