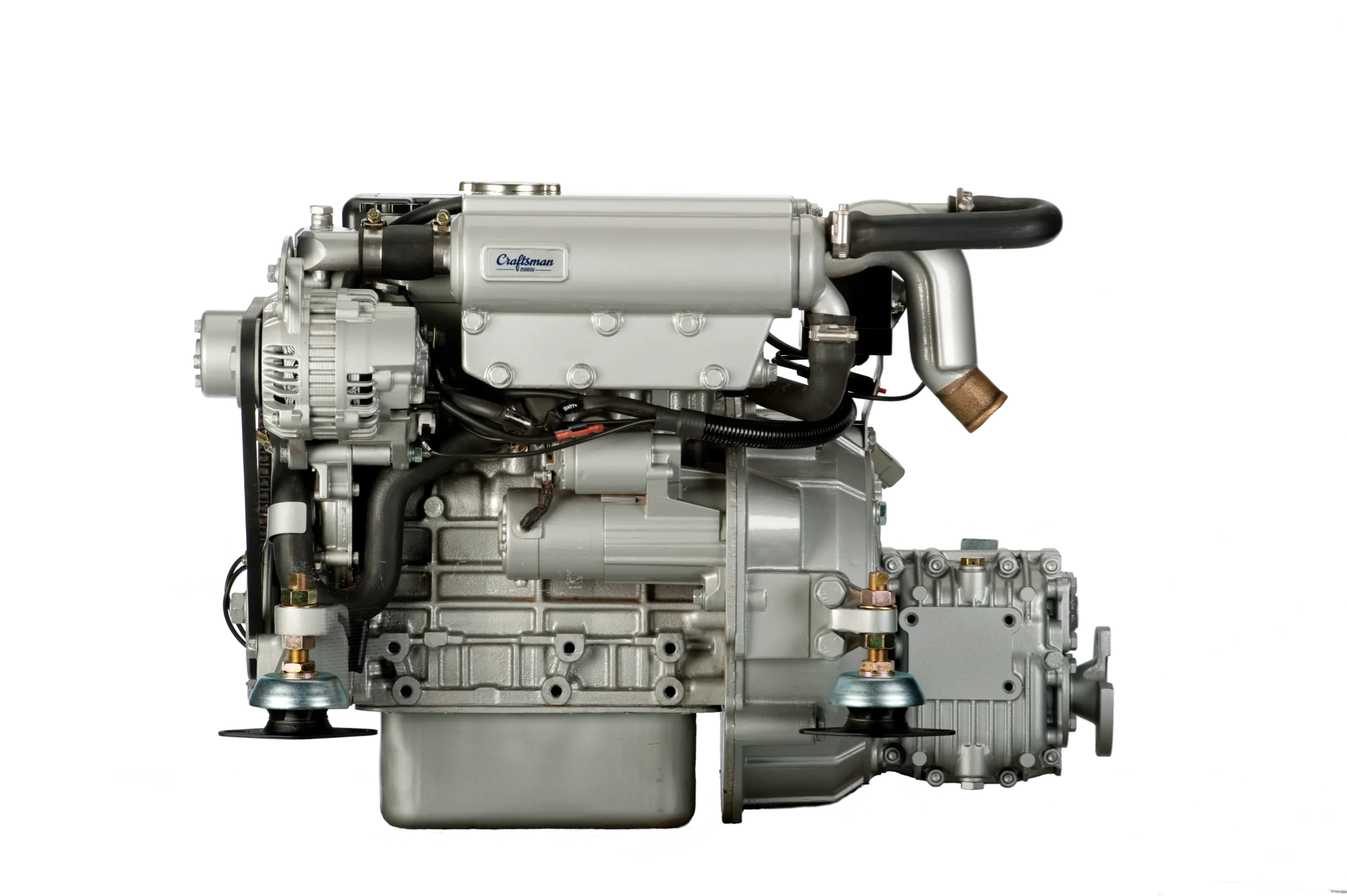

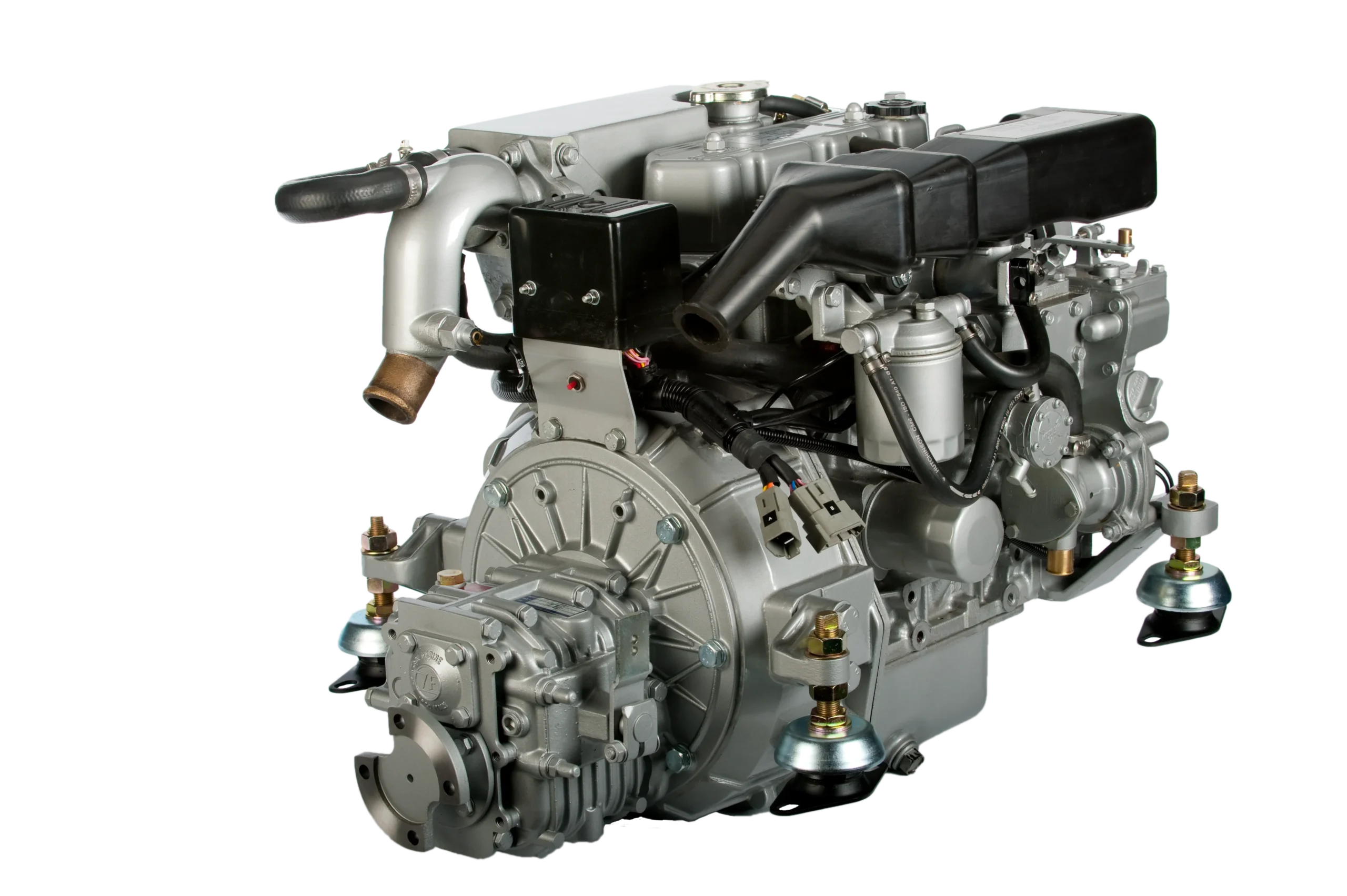

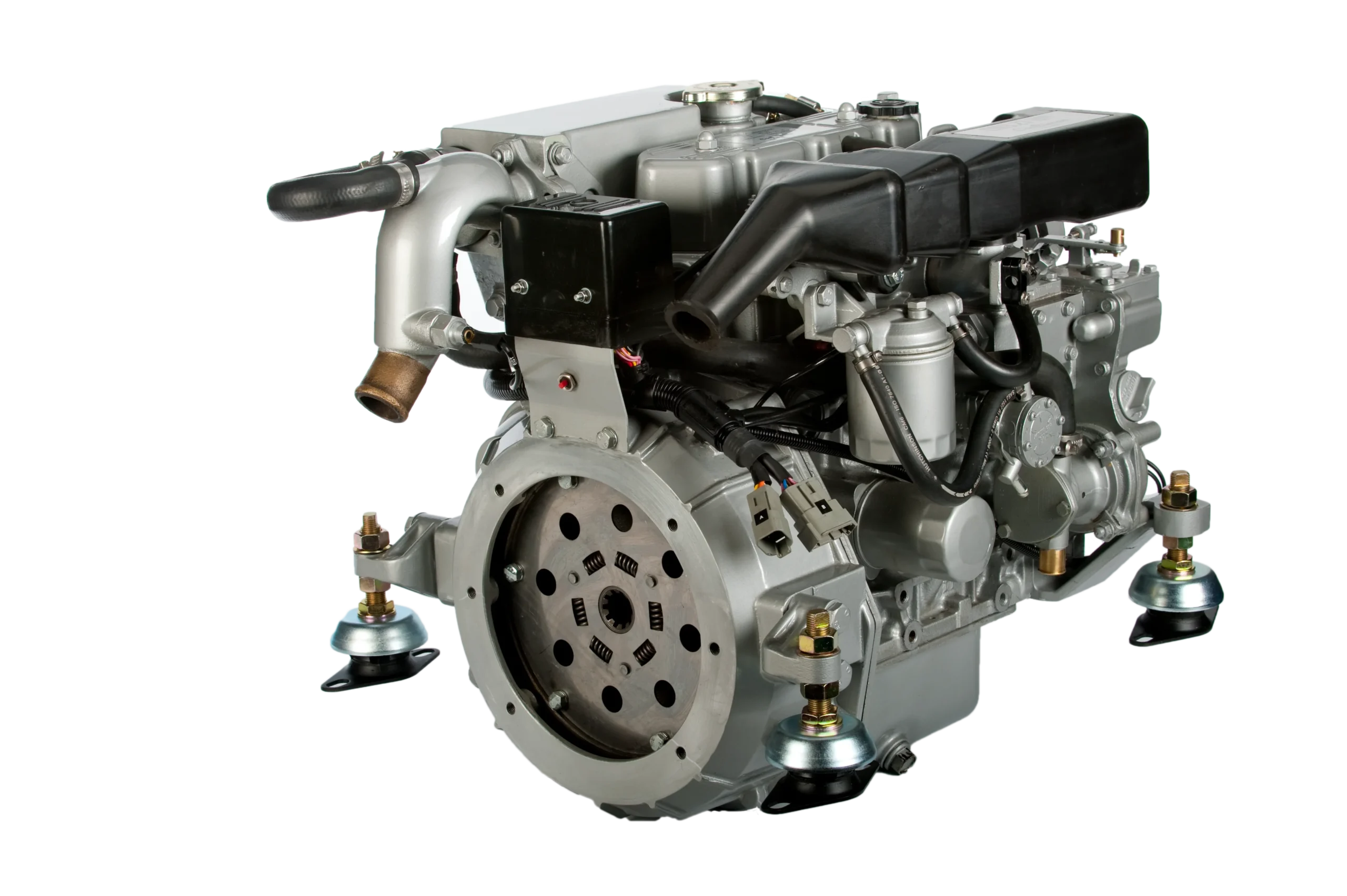

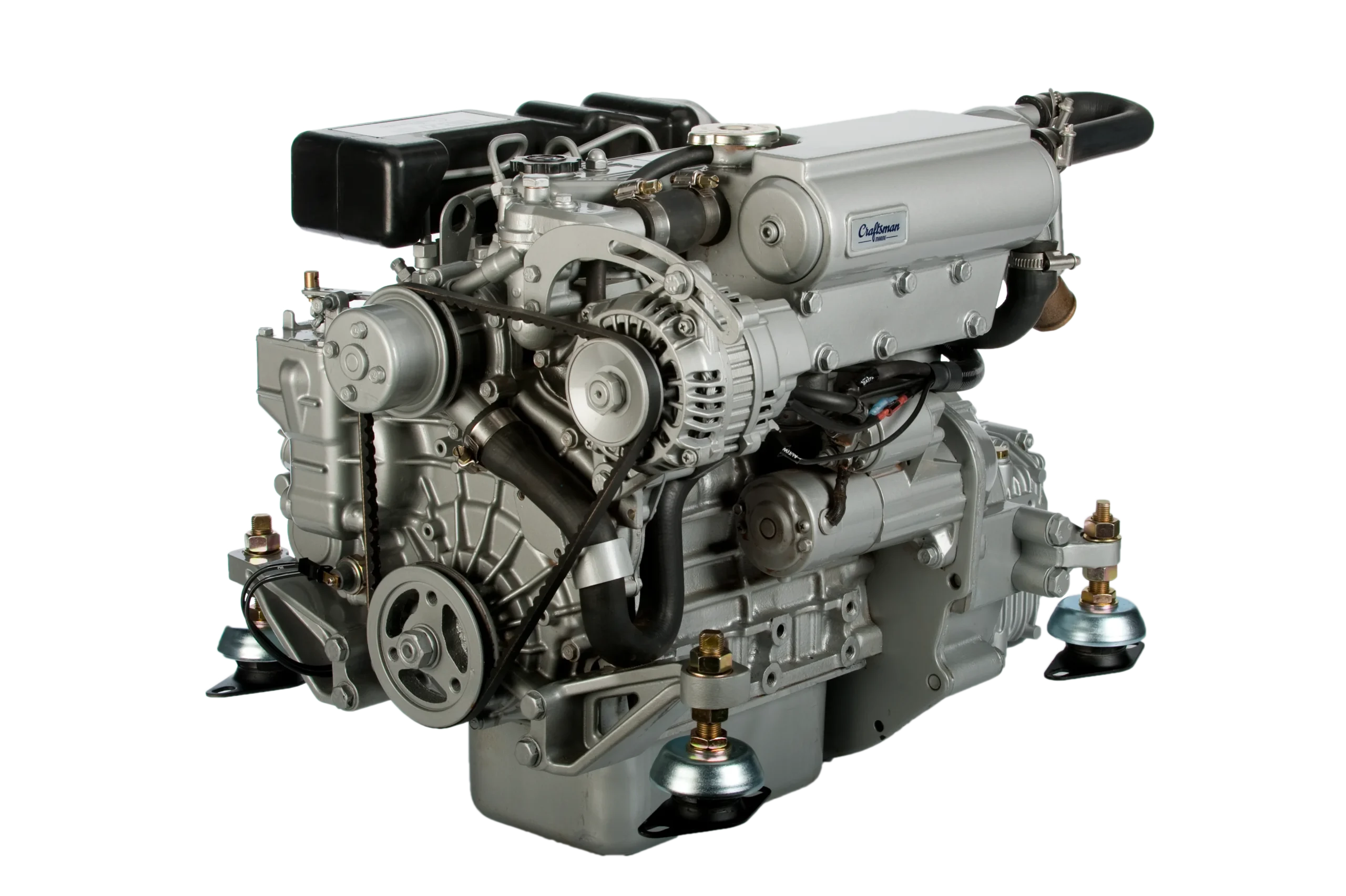

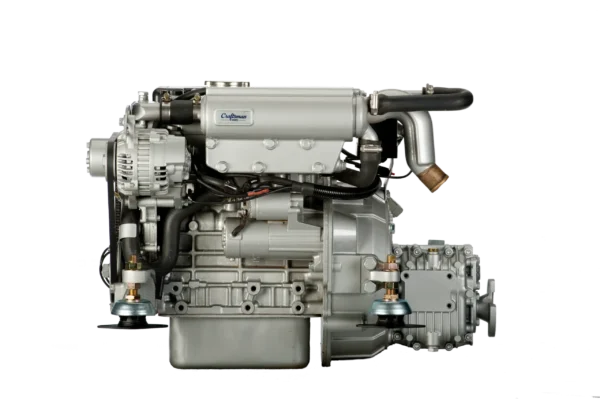

CM3.27

Assets:

  • Seawater resistant cast exhaust bend, providing a long and efficient service life.
  • Cupronickel heat exchanger resistance to corrosion.
  • Air inlet silencer.
  • Based on a Mitsubishi industrial engine, proven world-wide and with an equally world-wide support.
  • Complies with RCD II regulations.
Basic Engine Mitsubishi
Cylinders 3 In Line
Cylinder Capacity 952 cm³
Power 20kW / 27.2 hp
Max. Engine Speed 3.600 rpm
Max. Torque 58.5 Nm
Aspiration Natural
Alternator 70 A / 12 V (Bosch / SEG)
Cooling System Indirect, With Heat Exchanger
Flexible Engine Mounts CM type 3 (front) &CM type
Calorifier Connection Optional
Exhaust Diameter ø40 mm
Electronic Protection 10 A Circuit Breaker
Stop Solenoid Energized To Stop
Max. Installation Angle 15° (Backwards)
Weight 113 kg

Recommended Components

Request for quotation
