Mounting Flanges

Made from seawater-resistant bronze, these flanges are perfect for mounting the Craftsman Marine stern tubes.

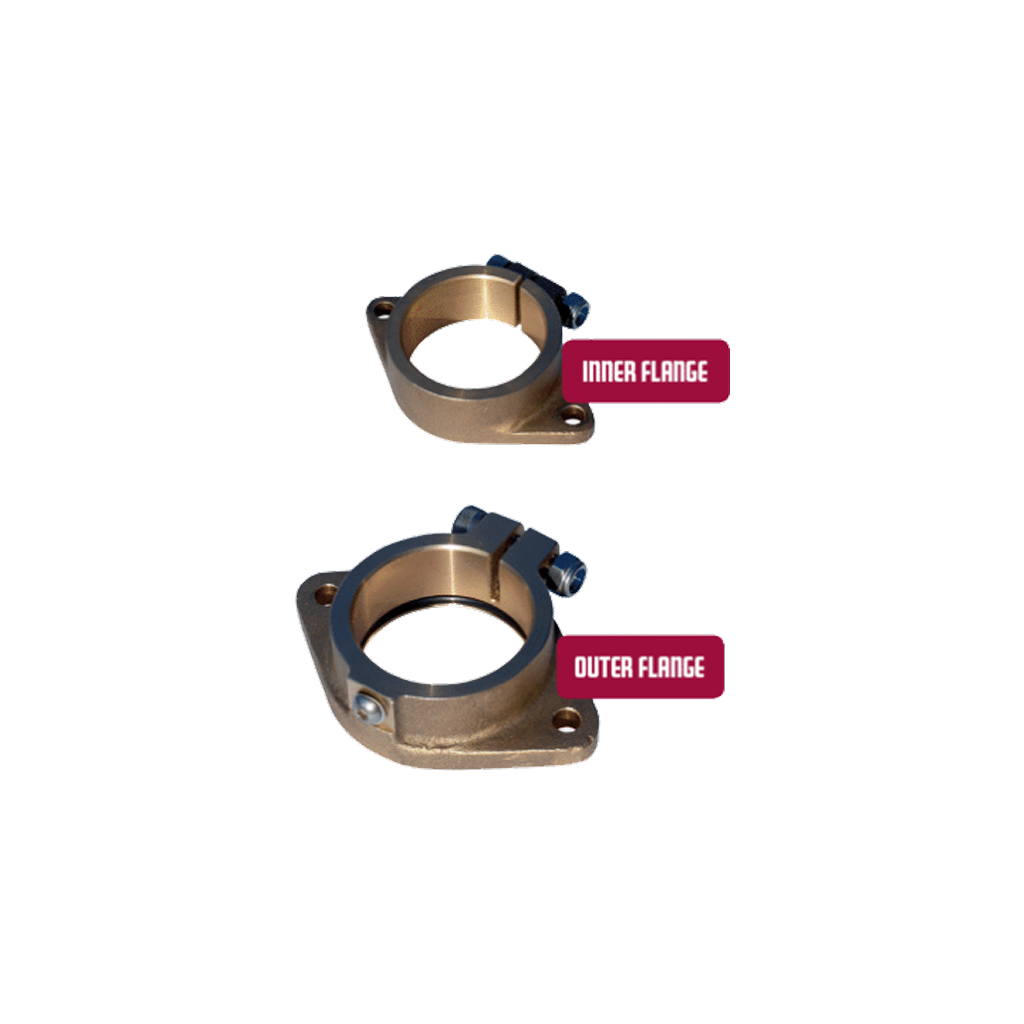

The outer flange incorporates a rubber O-ring to seal perfectly on the tube and keep your boat dry while keeping the possibility to replace the stern tube easily without the need of re-embedding the flange to the hull.

Article code* For shaft (mm) Stern tube (mm)
AD.040.22025 ø25 ø40
AD.040.22030 ø30 ø45
AD.040.22035 ø35 ø55
AD.040.22040 ø40 ø60
