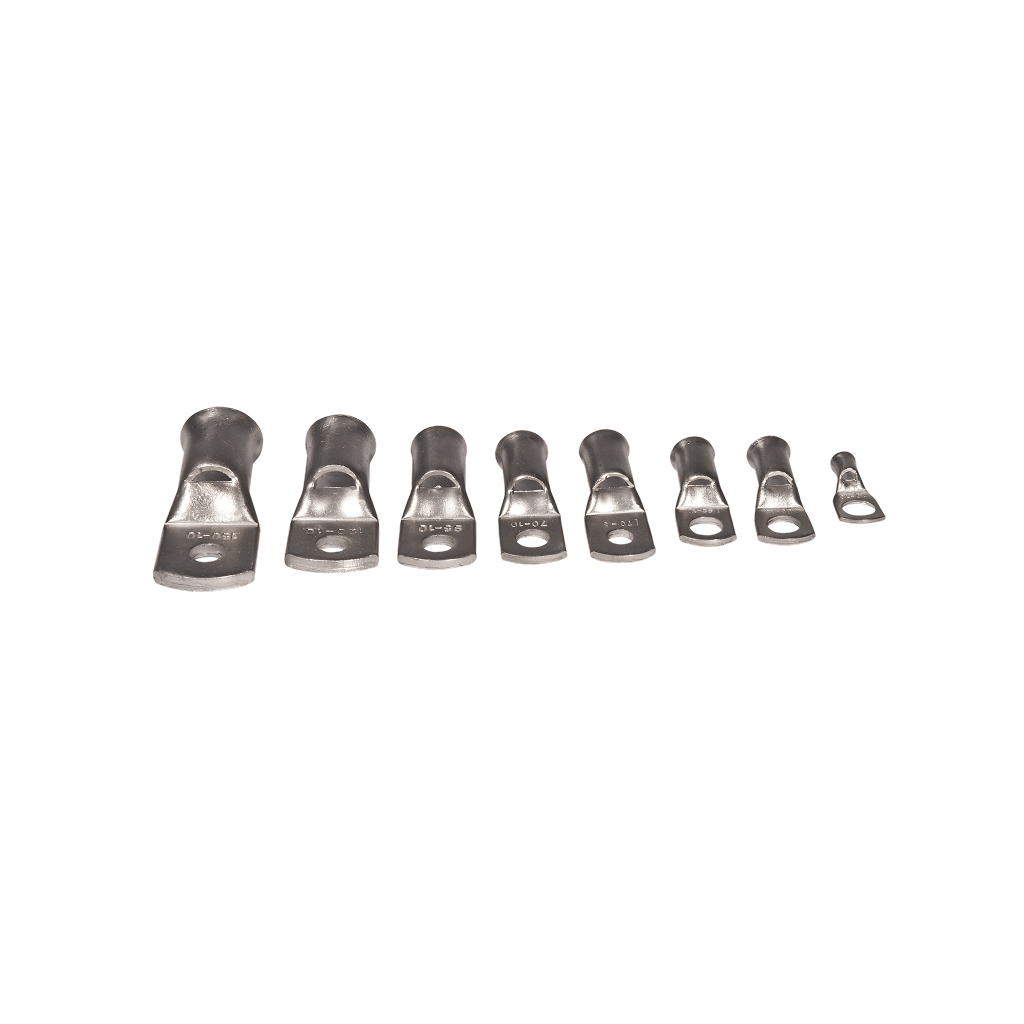

Cable Terminals

Perfect electrical conduction for Low voltage drop!

  • Massive copper, tin plated by means of electrolysis:
    • minimal voltage drop and heat generation.
    • resistant against humid surroundings and salty air.
  • Sleeve provided with a cable guide for easy cable entry due to the enlarged opening.
  • Inspection opening to verify that the cable is entirely inserted.
  • Extra long sleeve provides for a larger contact surface and therefore a lower transfer resistance, minimal voltage drop and minimal heat generation.
Material Tin Plated Copper

Configuration:

Articlecode Gauge Eye
DD.010.20606 6 mm² M6
DD.010.20608 6 mm² M8
DD.010.21006 10 mm² M6
DD.010.21008 10 mm² M8
DD.010.21010 10 mm² M10
DD.010.22508 25 mm² M8
DD.010.22510 25 mm² M10
DD.010.23506 35 mm² M6
DD.010.23508 35 mm² M8
DD.010.23510 35 mm² M10
DD.010.25008 50 mm² M8
DD.010.25010 50 mm² M10
DD.010.27008 70 mm² M8
DD.010.27010 70 mm² M10
DD.010.29508 95 mm² M8
DD.010.29510 95 mm² M10
DD.010.21201 120 mm² M10
DD.010.21501 150 mm² M10
