ALFA 40E

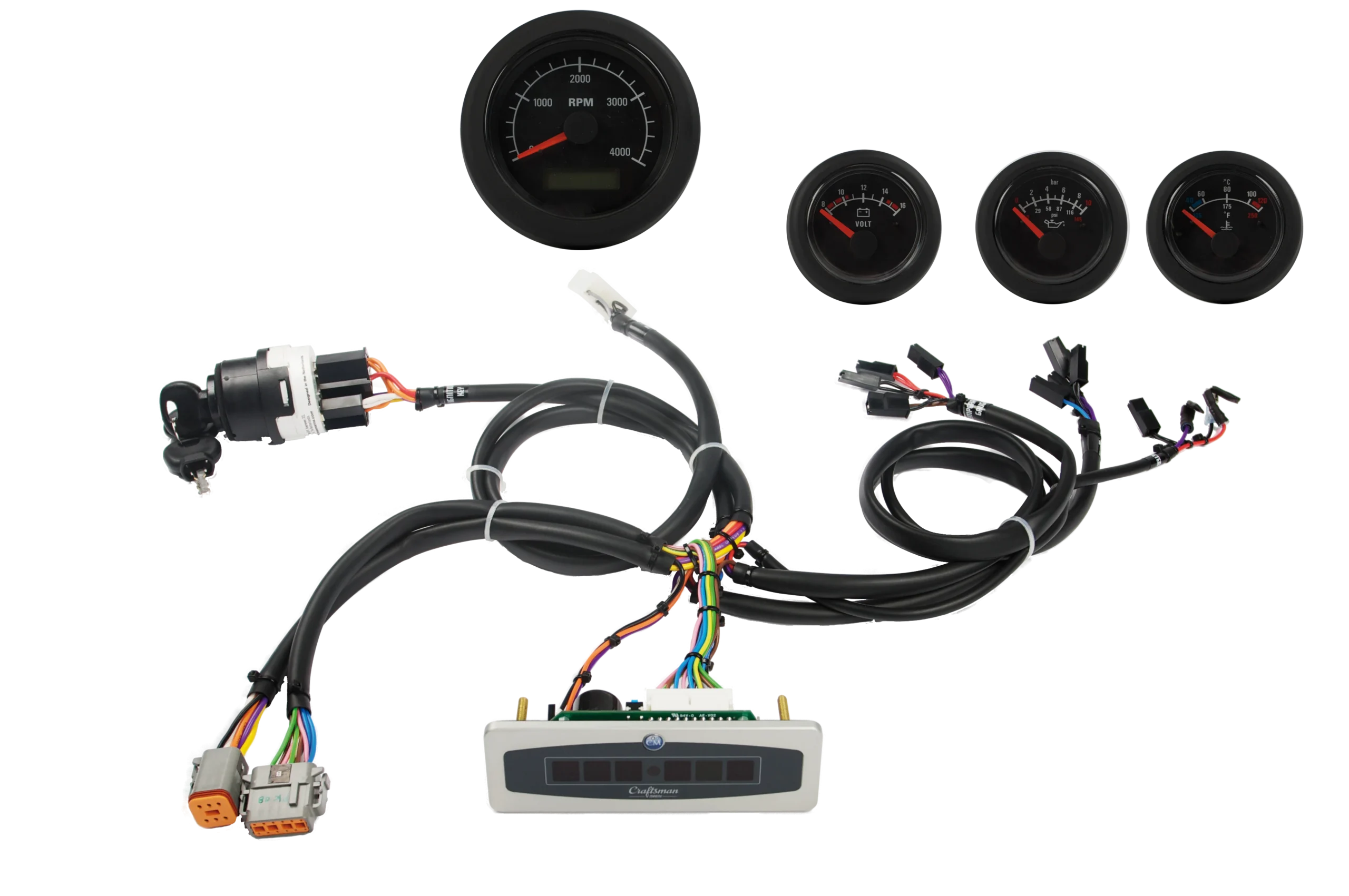

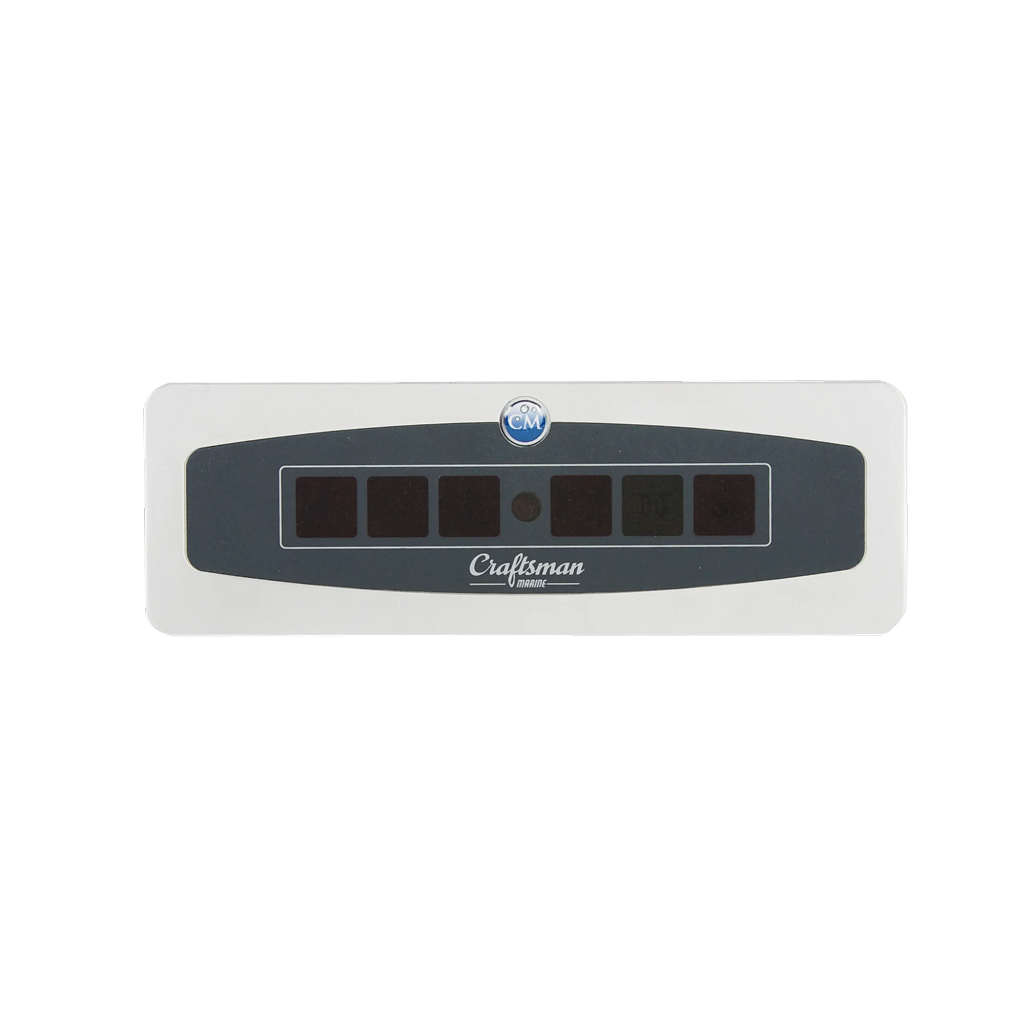

Create your personal instrument panel with our ALFA 40E. Panel is supplied with ignition switch and pre-wired cables for temperature gauge, oil pressure gauge, voltmeter and tachometer. Easy plug-in of the connectors; all wires are labeled.
Milled out of a solid aluminium plate and anodised for optimal corrosion resistance.

Assets:

  • Cableloom of 50cm in length.
  • Gauges are optional.
  • All optional gauges are provided with backlight. When using the optional automatic dimmer module the backlight of these instruments will dim.
  • Ultraviolet sunlight resistant foil at the front.
  • Stainless steel screws.
  • Gasket for dashboard mounting.
  • Printed wiring board with conformal coating for protection against humidity and glueing of component for protection against vibrations.
Operating Voltage 12 VDC
Automatic Dimmer Optional
Tachometer / Hour Counter Optional
Voltmeter Optional
Oil Pressure Gauge Optional
Panel Dimensions 150×50 mm
Cutout Size 102×34 mm
Installation Depth 114 mm
